In water well drilling, engineering drilling, geological drilling, and other drilling operations, different formations require different bit structures and rock-breaking methods. For soft formations and sticky soft formations, the three-wing PDC drag bit and four-wing PDC drag bit are widely used because of their simple structure, high cutting efficiency, and good cuttings removal performance.
YKDRILL provides PDC drag bits in different sizes and structures to match water well drilling rigs, engineering drilling rigs, and other drilling equipment. With proper formation selection and correct operation, PDC drag bits can help improve drilling efficiency and reduce overall construction costs.

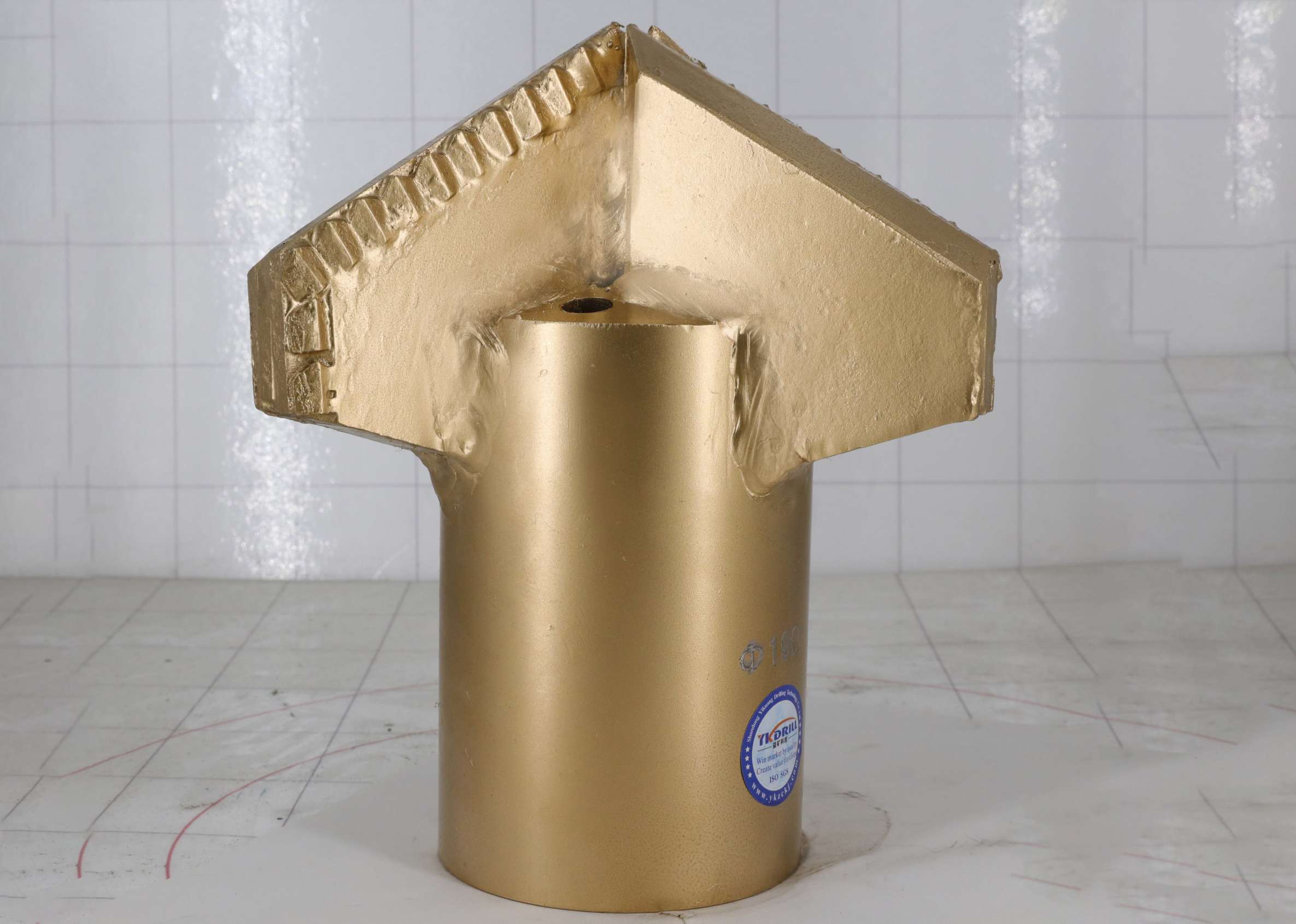

The structure of a PDC drag bit is relatively simple. It mainly consists of four parts: bit body, drag blades, water distribution cap, and nozzles.
The bit body is the main supporting structure of the whole bit. It is usually made of medium carbon steel and processed with precision machining. The upper part of the bit body is designed with connection threads, allowing it to connect reliably with drill pipes or the drill string. The lower part is used for welding and fixing the drag blades and water distribution cap, ensuring stable strength during rotary drilling.
The drag blades, also called cutter wings, are the core working components of the PDC drag bit. During drilling, the blades directly contact the bottom formation and break the rock through cutting, scraping, and shearing action. According to the number of blades, common types include three-wing PDC drag bits and four-wing PDC drag bits. The three-wing design usually provides larger cuttings discharge space and faster penetration in soft formations, while the four-wing design offers better drilling stability, more balanced cutting force, and improved support at the bottom hole.
The water distribution cap and nozzles are mainly used for drilling fluid guidance. Drilling fluid is sprayed to the bottom of the hole through the nozzles, which helps clean the bottom hole, carry cuttings out, cool the bit, and reduce wear. For soft formation drilling, a reasonable hydraulic design can reduce repeated crushing of cuttings and improve drilling efficiency.
The main rock-breaking method of a PDC drag bit is cutting and scraping. The drilling process varies depending on the formation characteristics.
In soft plastic formations, the rock-breaking principle is similar to cutting soft metal with a cutting tool. Under the action of weight on bit, the blades cut into the formation. At the same time, the torque from the drill string makes the rock in front of the blade flow plastically. The bottom formation is then peeled off layer by layer, allowing fast drilling progress.
In brittle or plastic-brittle formations, the rock-breaking process usually includes three repeated stages.
The first stage is the impact stage. After the broken rock in front of the blade is removed, the torsional resistance decreases. The blade moves forward with the rotation of the drill string and directly impacts the new rock ahead.
The second stage is the crushing and small shearing stage. Continuous torque squeezes the rock in front of the blade, causing local crushing and small shear cracks.
The third stage is the large shear breaking stage. As the blade continues to move forward, the torque reaches the ultimate strength of the formation rock. The rock then breaks along the shear surface, and the torsional resistance drops sharply.
These three stages repeat continuously, forming the complete rock-breaking process of the PDC drag bit in plastic-brittle formations. Proper control of weight on bit, rotary speed, and drilling fluid flow rate can keep the bit in a stable cutting state and improve drilling performance.
PDC drag bits are mainly suitable for:
Soft formations
Sticky soft formations
Mudstone, shale, and other easy-to-cut formations
Plastic formations with low abrasiveness
Shallow soft rock or overburden layers in water well drilling
It should be noted that PDC drag bits are not suitable for hard formations, highly abrasive formations, or complex broken hard rock formations. If used in unsuitable formations, the bit may suffer from rapid blade wear, reduced drilling efficiency, bit failure, bit sticking, or blade breakage.
Therefore, when choosing a three-wing PDC drag bit or a four-wing PDC drag bit, users should consider actual formation conditions, drilling rig capacity, drill pipe specifications, hole diameter requirements, and drilling methods.
PDC drag bits can achieve fast drilling speed in soft formations, but correct operation is essential to achieve stable performance.
First, the weight on bit and rotary speed should be properly controlled. Insufficient weight on bit may reduce blade penetration and lower rock-breaking efficiency. Excessive weight on bit may cause bit sticking, uneven blade stress, or bit damage. Rotary speed should also be adjusted according to formation conditions to avoid abnormal wear caused by excessive speed.
Second, sufficient drilling fluid flow rate should be ensured. In soft formation drilling, the cutting speed is fast and the volume of cuttings is large. If the flow rate is insufficient, cuttings cannot be removed from the bottom hole in time, which may lead to repeated crushing, bit balling, sticking, or overheating. A large drilling fluid flow rate can effectively clean the bottom hole, cool the bit, and reduce blade wear.
Third, attention should be paid to deviation control and bit sticking prevention. During drilling, the outer side of the blade has a higher linear speed and wears faster during long-term operation. If the bit is not inspected or replaced in time, it may gradually wear into a tapered shape, resulting in reduced hole diameter and borehole deviation.
Finally, the bit condition should be checked regularly. During operation, the drilling speed, torque changes, cuttings discharge, and drilling fluid return should be closely monitored. If abnormal vibration, obvious decrease in penetration rate, or large torque fluctuation occurs, drilling should be stopped for inspection to avoid further damage.
The three-wing PDC drag bit usually has larger cuttings discharge space. It is suitable for soft formations with large cuttings output and high requirements for drilling speed. Its open blade structure helps improve cuttings removal and is suitable for soft soil, mudstone, sticky soft layers, and similar drilling conditions.
The four-wing PDC drag bit provides better cutting stability and more balanced force distribution. Compared with the three-wing structure, the four-wing bit has more stable bottom-hole contact and better support performance. It is suitable for working conditions that require higher hole diameter stability and smoother drilling.
In actual selection, users should consider formation hardness, hole diameter, rig torque, drilling fluid flow rate, and drilling efficiency requirements. YKDRILL can recommend suitable PDC drag bit models according to the customer’s hole diameter, thread connection, drilling rig model, and formation conditions.
As a professional supplier of drilling rigs and drilling tools, YKDRILL provides global customers with water well drilling rigs, geological exploration drilling rigs, DTH drilling tools, wireline coring tools, drill rods, drill bits, and related drilling accessories.
For PDC drag bits, YKDRILL focuses on structural strength, welding quality, blade layout, and hydraulic design. Our goal is to help customers achieve higher drilling efficiency, more stable operation, and lower overall drilling costs in suitable soft formations.
If you are looking for three-wing PDC drag bits or four-wing PDC drag bits for soft and sticky soft formations, YKDRILL can provide practical product recommendations based on your drilling depth, hole diameter, thread connection, drilling rig configuration, and formation conditions.
